LiFePO4 lithium ion solar battery 48V 500Ah
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 50 Piece/Pieces |
| Delivery Time: | 15-25 Days |
Basic Info
Model No.: 48500
Additional Info
Packaging: 1pc/carton
Productivity: 3000pack/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 3000packs/month
Certificate: ISO14001, ISO18001,UL1642
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description

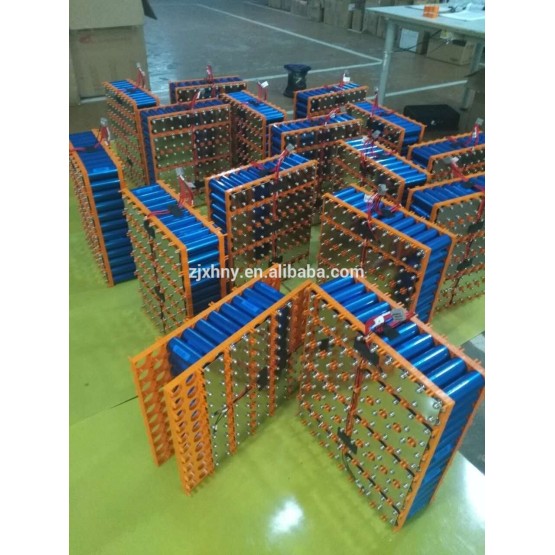

1,48V 50Ah battery pack is combined with 80 pieces of 38120(3.2V 10Ah) cells.

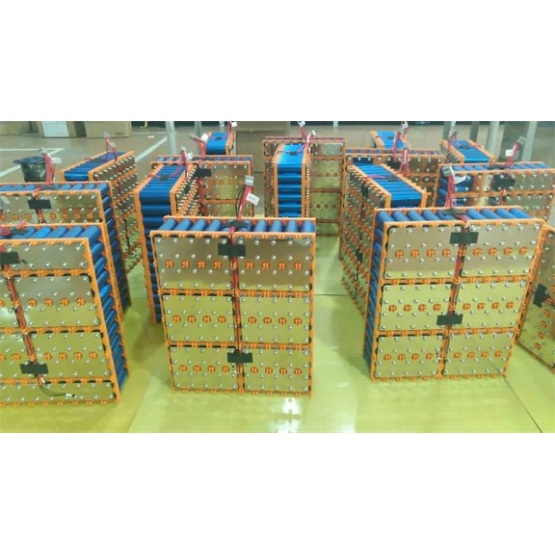

2,We can connect 10pcs of 48V50Ah in parallel to make 48V 500Ah battery pack.They are widely used in solar energy,solar systems.
3.Energy saving,environmental protection.
The single cells 38120 cells are as follow:
|
Item |
specification |
||
|
Nominal capacity |
10AH |
||
|
Nominal voltage |
3.2V |
||
|
Internal resistance |
≤6mΩ |
||
|
Max. charge current |
2C(20A) |
||
|
Max. charge voltage |
3.65±0.05V |
||
|
Max. discharge current(continuous) |
3C(30A) |
||
|
Max. discharge current(pulse) |
10C(100A) |
||
|
End-off discharge voltage |
2.0V |
||
|
Dimension |
Dia |
Φ38±1mm |
|
|
|
H |
122 ±1mm |
|
|
Cycle life |
>2000times |
||
|
Weight |
Approx.330g |
||
|
Operate temperature
|
-20~60°C |
||
|
Storage temperature |
One month |
-20~45°C |
|
|
|
Six month |
-20~35°C |
|

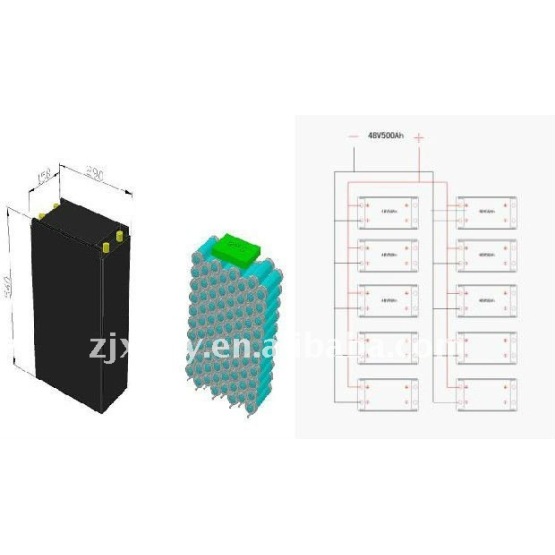

The 48V 500Ah battery pack is as follow:
