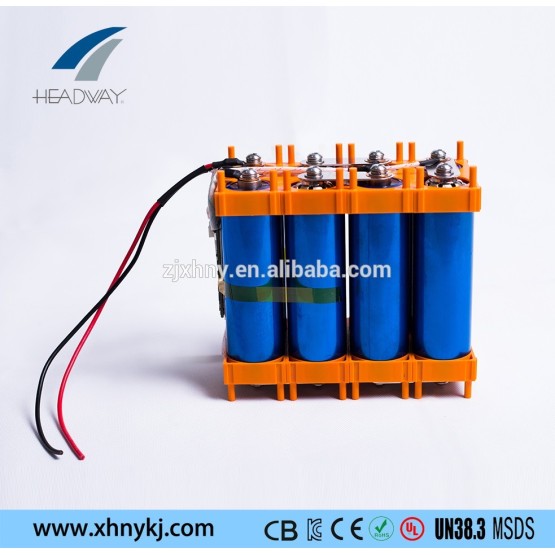

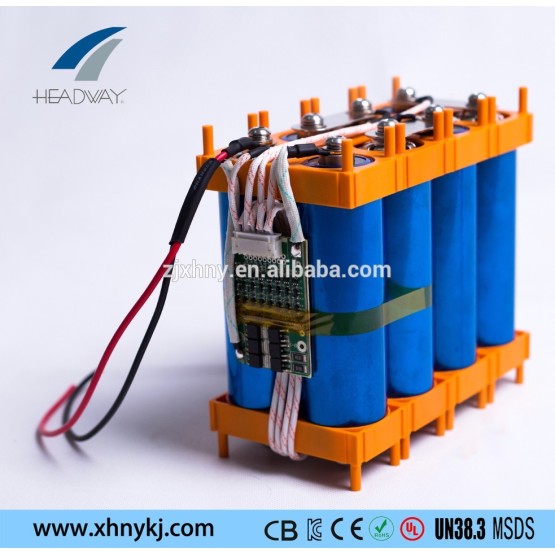

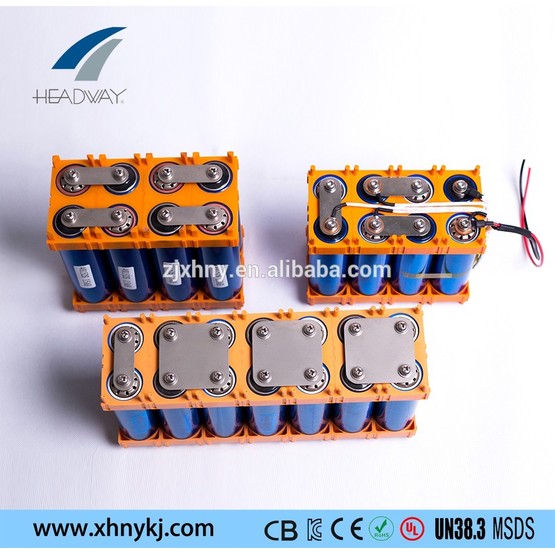

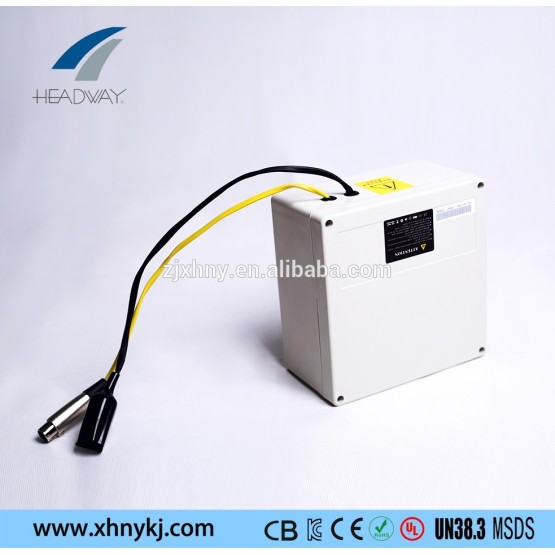

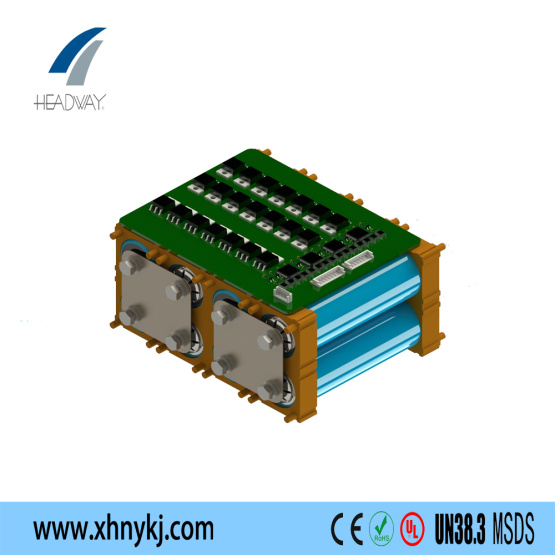

lifepo4 battery 12V20Ah for dc power supply
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 100 Piece/Pieces |
| Delivery Time: | 15-25 Days |
Basic Info
Model No.: 1220
Additional Info
Packaging: 1pc/carton
Productivity: 3000pack/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 3000packs/month
Certificate: ISO14001, ISO18001,UL1642
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description


|

										Item

								 |


										Specification

								 |

|

										Nominal Voltage

								 |


										12V

								 |

|

										Nominal Capacity(0.5C,25℃)

								 |


										20Ah

								 |

|

										Weight(Approximate)

								 |


										≤3kg

								 |

|

										Dimension(Length*Width*Height)

								 |


										170mm*110mm*160mm

								 |

|

										Standard Discharge

								 |
							|
|

										Max. Continuous Current

								 |


										30A

								 |

|

										Over Current

								 |


										100A

								 |

|

										Cut-off Voltage

								 |


										10V±1V

								 |

|

										Standard Charge

								 |
							|
|

										Charge Voltage

								 |


										14.5V±0.1V

								 |

|

										Recommended Charge Current

								 |


										5A

								 |

|

										Charge Time

								 |


										4.5 hours

								 |

|

										Resistance and rates

								 |
							|
|

										Internal Resistance

								 |


										≤30mΩ

								 |

|

										Self-discharge rate

								 |


										≤2% per month

								 |

|

										General Features

								 |
							|
|

										Assembly cell

								 |


										38120S 10Ah

								 |

|

										BMS specs

								 |


										30A-100A

								 |



















						Don’t immerse the battery in water;
Don’t use and leave the battery near a heat source such as fire or heater;
When charging, use a battery charger specifically for that purpose;
Don’t reverse the positive and negative terminals;
Don’t discard the battery in fire or heater;
Don’t connect the battery to an electrical outlet directly;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the battery together with metal objects such as necklaces, hairpins;
Don’t directly solder the battery;
Don’t pierce the battery with a nail or other sharp object.
