Headway lifepo4 high discharge rate rechargeable lithium ion battery pack 24V16Ah SPECS

Nominal Voltage 24V

Nominal Capacity(0.5C,25℃) 16Ah

Weight(Approximate) ~8kg

Dimension(Length*Width*Height) ~290*158*160mm (can be customized)

Standard Discharge@25℃

Max. Continuous Current 100A

Max. 20 sec. Pulse 150A

Cut-off Voltage 20V±0.2V

Standard Charge

Charge Voltage 29.2V±0.2V

Recommended Charge Current 80A

Max. Charge current 100A

Charge Time 15min

Resistance and rates

Internal Resistance ≤10mOhm

Self-discharge rate ≤3% per month

General Features

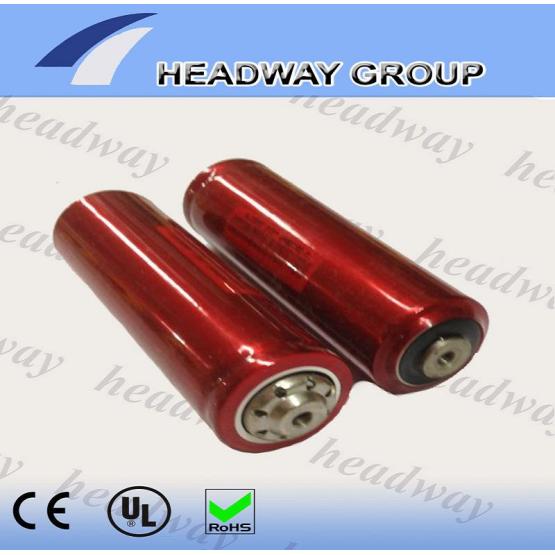

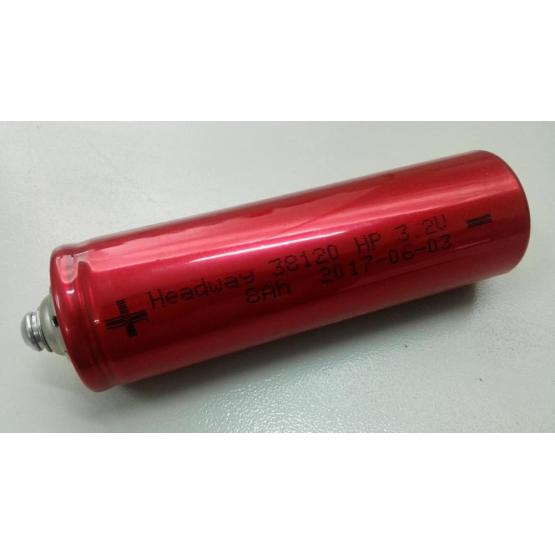

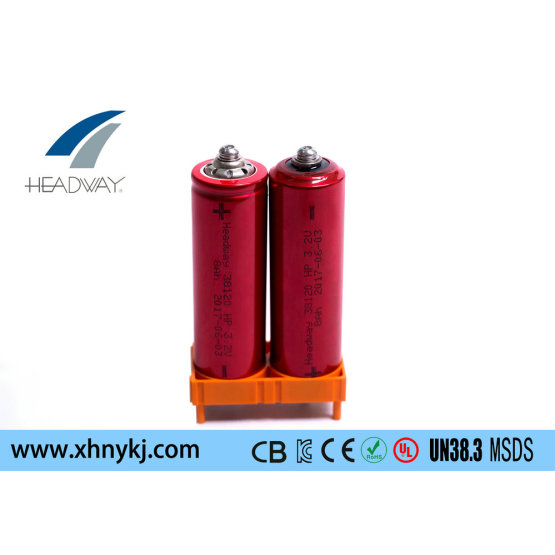

Assembly cell 38120HP 8Ah

BMS specs 100A-200A

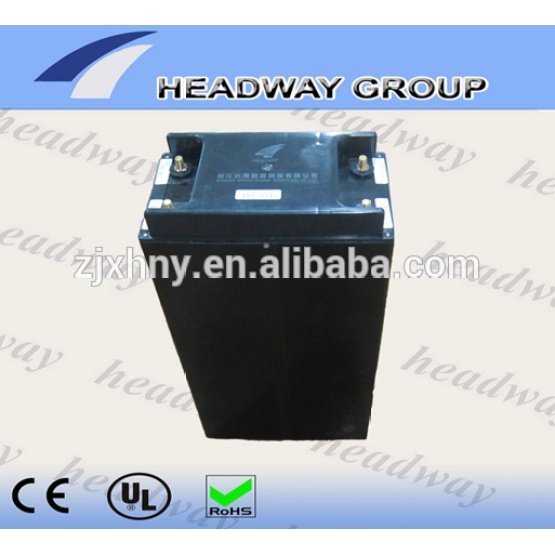

The battery pack

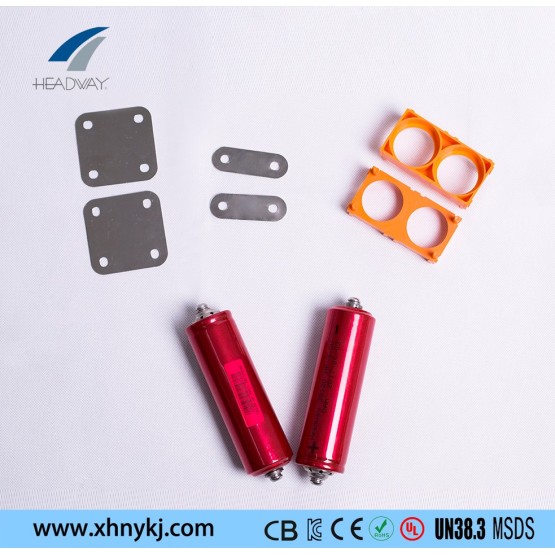

1. We can supply the whole pack or the single cell with

accessories to you if you need;
2. We also can design many other kinds of battery packs

for you according to your requirements.
