Headway 48V 100Ah Lithium ion lifepo4 battery Pack

Payment Type: T/T,Paypal,Western Union
Incoterm: FOB,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 20 Days

Basic Info


Model No.: NE48D100-NP

Type: Lithium-Ion Batteries

Usage: Car, Electric Bicycle, Electric Power, UPS, Bus

Nominal Voltage: 48V

Discharge Rate: Medium Discharge Rate

Shape: Square Battery

Electrolyte: Acid

Installation: Fixed

Rechargeable: Chargeable

Specification: 48v 100Ah

Battery Type: LiFePO4

Application: Solar Energy, Telecom Energy Storage Backup Battery


Additional Info


Packaging: Wooden case

Productivity: 1000 pieces/ month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1000 pieces/ month

Certificate: iso, un38.3

HS Code: 8507300000

Port: Shenzhen,Shanghai,Hongkong


Product Description

Headway 48V 100Ah BMS Lithium ion lifepo4 battery Pack

Lithium Ion Battery Details

Use 90 pcs 3.2V17Ah LiFePO4 cylindrical cell 40152 with 15 series and 6 parallel connections, to complete 48V100Ah battery pack. The battery pack uses metal casing, and the gross weight is about 58KG.

1)Battery Pack:48V100Ah
2)Maximum Size:442*410*220mm
3)The whole system includes cells, BMS and metal case

4) Total weight: 58KG

NE48D100-NP Main component configuration table

No. Main component Parameter Quantity Remarks
1 Cell 3.2V17Ah 90
2 BMS 15 series LiFePO4 PCBA 1 With RS232 and RS485
3 Metal casing 15 series LiFePO4 PCBA 1
4 Holders and connectors / /

Warning in handling the lithium-ion Cell

To prevent the possibility of the cell from leaking, heating, explosion, please observe the following
precautions:
Don’t immerse the cell in water;
Don’t use and leave the cell near a heat source such as fire or heater;
When charging, use a cell charger specifically for that purpose;
Don’t reverse the positive and negative terminals;
Don’t discard the cell in fire or heater;
Don’t connect the cell to an electrical outlet directly;
Don’t discard the cell in fire or heater;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the cell together with metal objects such as necklaces, hairpins;
Don’t pierce the cell with a nail or other sharp object.

For details, please kindly Send us Inquiry or Contact us

Guifeng Zhou (Alyssa)

Zhejiang Headway Communication Equipment Co., Ltd.

Skype: zhouguifeng12

Phone/WeChat/WhatsApp:+8615977189345

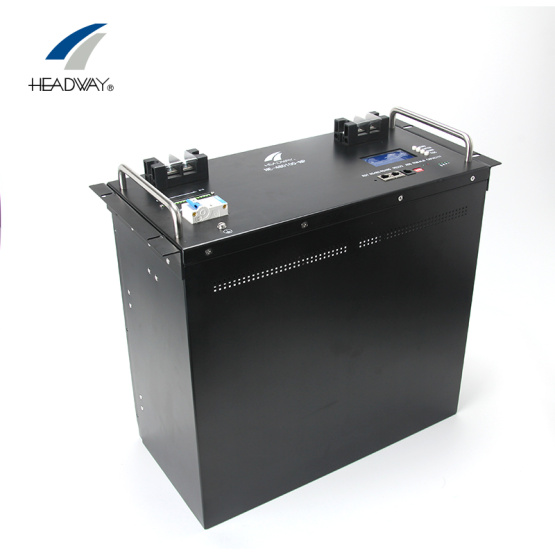

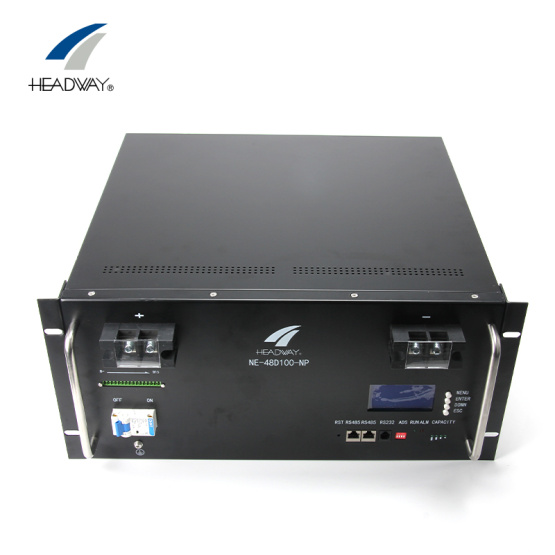

Headway 48V 100Ah BMS Li-ion Lithium ion lifepo4 battery Pack.jpg

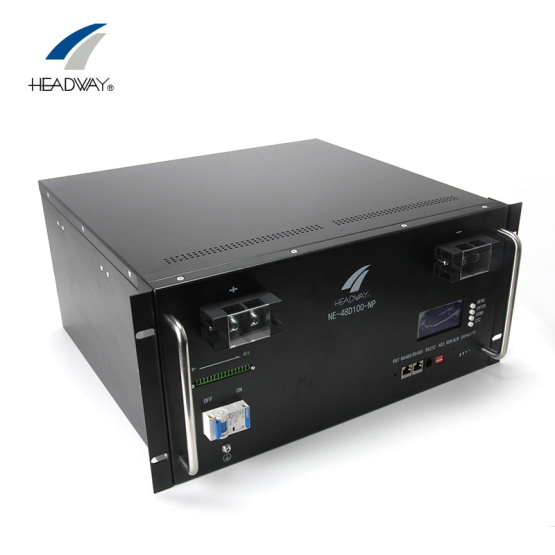

Headway 48V 100Ah BMS Li-ion Lithium ion lifepo4 battery Pack.jpg

Item Parameter
Rated Voltage(V) 48V
Rated Capacity(Ah) 100AH
Working voltage range(V) 42-54.8V
Operating temperature range -10-55℃
Charging Current(Recomm)  30A
Charging Current(Max) 100A
Continuous discharge current  100A
Instant discharging current 150A,10ms
Life cycle time 5000 times
Calendar life 8 years
Communication in parallel 15 models in maximum
Operating humidity <90%
Size(mm) 442mm*410mm*220mm
Status Indicators SOC/ALM/RUN
Communication Ports RS232/RS485
Reset Key Available
LCD Screen Optional
Buzzer Available
Dip switch Available
