Basic Info

Model No.: 40152S-17Ah

Additional Info

Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton

Productivity: 150000pcs/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 150000pcs/month

Certificate: ISO14001,ISO18001,UL1642,RoHS,TS16949,CB

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

Product Description

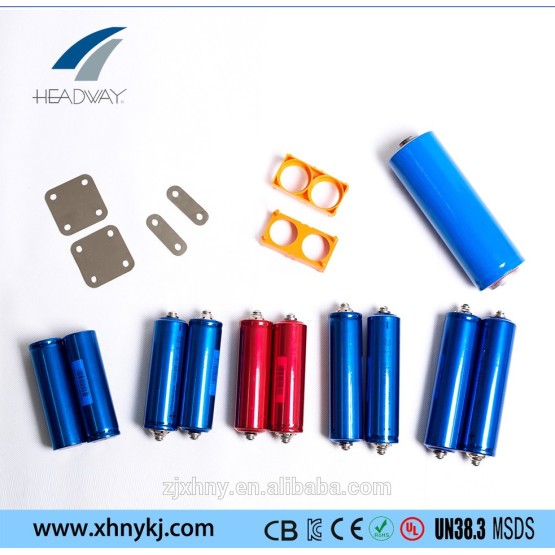

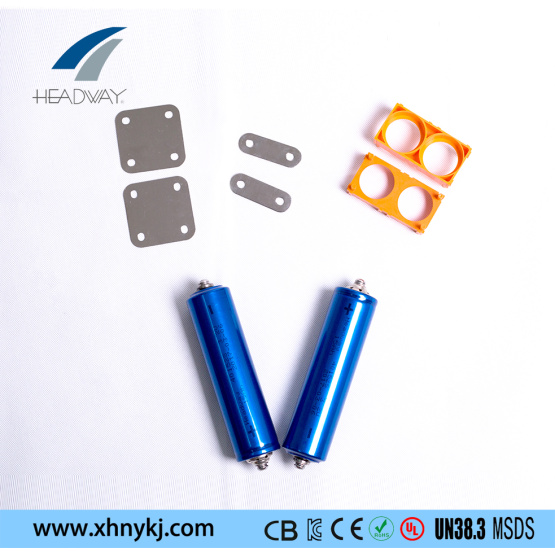

Headway recharge battery deep cycle lifepo4 cell 40152S 3.2v 17ah for solar energy storage battery SPECS

Item	Specification
Nominal capacity	17Ah @ 0.5C
Minimum capacity	16.5Ah @ 0.5C
Nominal voltage	3.2V
Max Charging voltage	3.65 ±0.05 V
Discharge ending voltage	2.5 ±0.05 V
Charge current	Standard charge: 0.2C   Max charge: 1C
Discharge current	Standard discharge: 0.5C   Max continuous discharge: 2C   Max instant (3s) discharge: 10C
Recommended charge and discharge cell surface temperature	Charge: 0～45 ℃   Discharge: -20～60 ℃
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life.	Charge: 60 ℃ Discharge: 75 ℃
Humidity range	0～90%RH (noncondensing)
Internal resistance	≤4mOhm (AC Impedance, 1000HZ)
Cell dimension	Height: 168 mm Max   Diameter: 41.0mm Max
Weight	≤490g
