Basic Info

Model No.: 38120HP-8Ah

Additional Info

Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton

Productivity: 150000pcs/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 150000pcs/month

Certificate: ISO14001, ISO18001,UL1642

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

Li-ion battery

Item	Specification
Nominal capacity	8Ah @ 1C
Minimum capacity	7.5Ah @ 1C
Nominal voltage	3.2V
Max Charging voltage	3.65 ±0.05 V
Discharge ending	2.5 ±0.05 V
Charge current	Standard charge: 3C Max charge: 10C when T≥10 ℃ Max charge: 3C when 10 OC≥T≥0 ℃ Max charge: 0.1C when 0 OC≥T≥-10 ℃
Discharge current	Standard discharge: 5C Max continuous discharge: 15C Max instant (30s) discharge: 30C
Charge and discharge cell surface temperature rise	5C continuous discharge:≤15 ℃ 10C continuous discharge:≤25 ℃
Recommended charge and discharge cell surface temperature	Charge: 0～45 ℃ Discharge: -20～60 ℃
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will shorten cell cycle life.	Charge: 60 ℃ Discharge: 75 ℃
Humidity range	0～90%RH (noncondensing)
Internal resistance	≤2.5mOhm
Cell dimension	Height: 136 mm Max Diameter: 38.5mm Max
Max charge: 10C when T≥10 ℃	4.5 hours
li-ion battery 38120hp Weight	≤350g

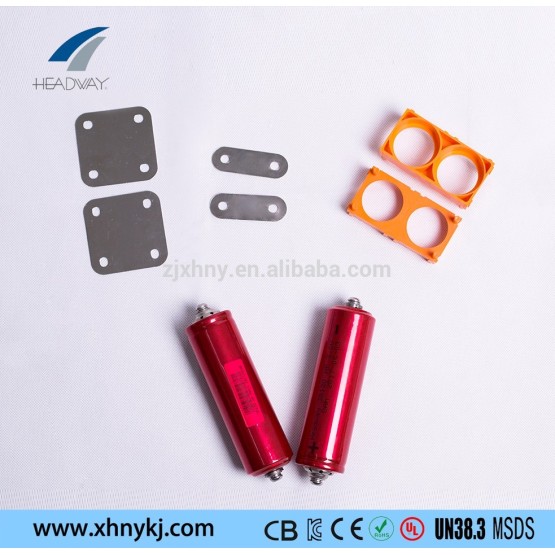

Detailed Images
