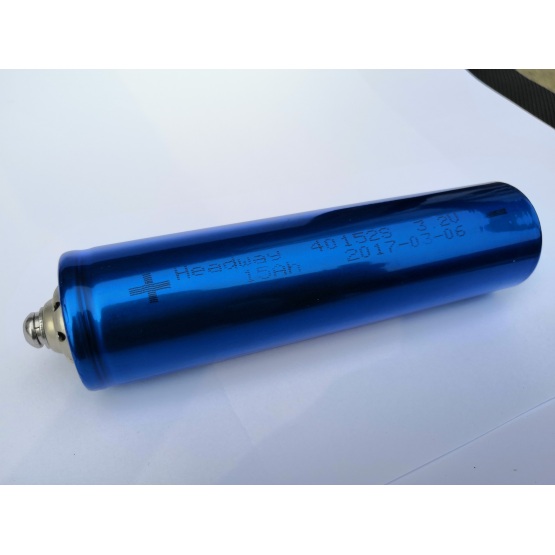

40152S 3.2V 15AH lifepo4 battery for motorcycle
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW,FCA |
Min. Order: | 5000 Piece/Pieces |
Delivery Time: | 15-25 Days |
Basic Info
Model No.: 40152S-15Ah
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001, ISO18001,UL1642
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description
Item
|
Specification
|
Nominal capacity
|
15Ah @ 0.5C
|
Minimum capacity
|
14.5Ah @ 0.5C
|
Nominal voltage
|
3.2V
|
Max Charging voltage
|
3.65 ±0.05 V
|
Discharge ending voltage
|
2.5 ±0.05 V
|
Charge current
|
Standard charge: 1C
Max charge: 2C when T≥10 ℃
Max charge: 1C when 10 OC≥T≥0 ℃
Max charge: 0.1C when 0 OC≥T≥-10 ℃
|
Discharge current
|
Standard discharge: 1C
Max continuous discharge: 3C
Max instant (30s) discharge: 10C
|
Recommended charge and discharge cell surface temperature
|
Charge: 0~45 ℃
Discharge: -20~60 ℃
|
Maximum allowable charge and discharge cell surface temperature. Charging and discharging at these conditions will
shorten cell cycle life. |
Charge: 60 ℃
Discharge: 75 ℃ |
Humidity range
|
0~90%RH (noncondensing)
|
Internal resistance
|
≤4mOhm (AC Impedance, 1000HZ)
|
Cell dimension
|
Height: 168 mm Max
Diameter: 41.0mm Max
|
Weight
|
≤490g
|
Model
|
38120S
|
38120L
|

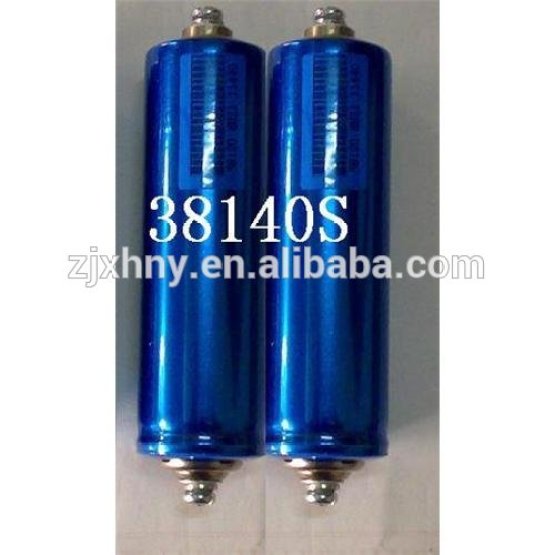

38140S
|
40152S
|
38120HP
|
Nominal capacity
|
10Ah
|
10Ah
|
12Ah
|
15Ah/17Ah
|
8Ah
|
Operating voltage range
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
Nominal voltage
|
3.2V
|
3.2V
|
3.2V
|
3.2V
|
3.2V
|
Internal resistance
|
≤4mΩ
|
≤4mΩ
|
≤4mΩ
|
≤4mΩ
|
≤2.5mΩ
|
Battery size
|
D38*H135mm
|
D38*H120mm
|
D38*H155mm
|
D40*H165mm
|
D38*H135mm
|
Standard charge current
|
1C
|
1C
|
1C
|
1C
|
3C
|
Max. continuous charge current
|
2C
|
2C
|
2C
|
2C
|
10C
|
Standard discharge current
|
1C
|
1C
|
1C
|
1C
|
5C
|
Max. continuous discharge current
|
3C
|
3C
|
3C
|
3C
|
15C
|
Max. pulse discharge current
|
10C
|
10C
|
10C
|
10C
|
30C
|
Cycle life(With standard charge and discharge)
|
2000
|
2000
|
2000
|
2000
|
2000
|
-10 degrees discharge(VS. normal temperature)
|
0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
Allowable operating temperature range
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
Capacity retention at room temperature with 28 days
|
≥97%
|
≥97%
|
≥97%
|
≥97%
|
≥97%
|
Capacity recovery rate at room temperature with 28 days
|
0.99
|
0.99
|
0.99
|
0.99
|
0.99
|
