Basic Info

Model No.: HW38120S-10Ah

Additional Info

Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton

Productivity: 150000pcs/month

Brand: Headway

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 150000pcs/month

Certificate: ISO14001,ISO18001,UL1642,RoHS,TS16949,CB

HS Code: 8507600090

Port: Shenzhen,Shanghai

Product Description

38120S

Nominal Capacity: 10AH

Nominal Voltagge: 3.2V

Charging Voltage:3.65V

Cut off Discharge Voltage:2.0V

Charging Method:CC/CV

Max Charge Current(continuous):50A

Max Discharge Current(continuous):100A

Cycle life: 2000 clcles 1C 80% DOD

Energy Density: 97Wh/KG

Power Density: 909W/KG

Initial internal impedance: <6mΩ

Dimension:

Diameter: 38mm   Height: 120mm

Weight: 330g

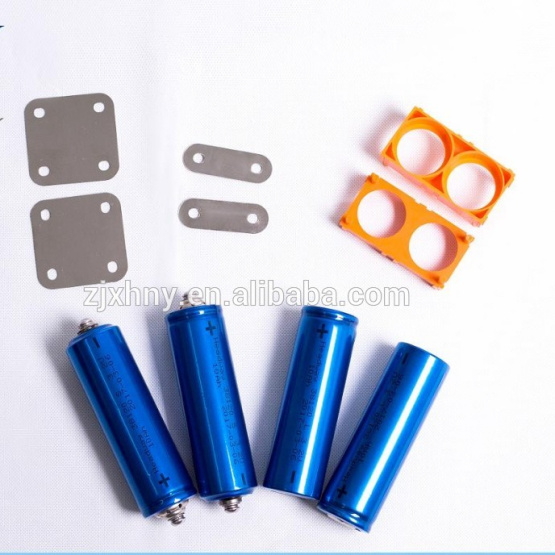

1) 38120S(3.2V10Ah) with srcew assemble, it's very easy for assemble, and widly used on motorcyclepower battery.

2) 38120L(3.2V10Ah) should need welding.

3) 38120P(3.2V8Ah) is high power with fast discharge, it's suitable for racing EV, electric car start-up power.

38120 serises of LiFePO4 battery is our patent products, and our costomers sing high praise for it about it's good performance, just like high discharge rate(can 10C) and nic discharge curve!

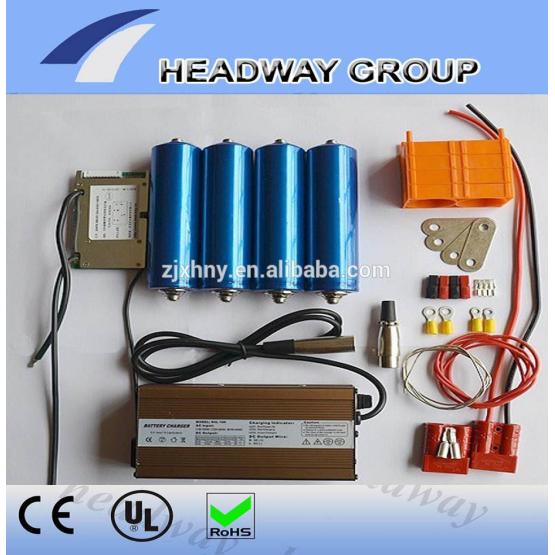

You can tell us your requests, such like what's the working discharge current and peak dischage current, and the voltage of your EV motor, and the drive distance that you want after fully charged. Then we can design for you with the BMS!

If you are interested in,please do not to hesitate with me .Any small order or sample order are welcome.

There are many good words for our headway lithium battery 38120 cells on some foreign EV forums.It's general accepted good lithium battery. We are now looking for agent and distributer who know lithium batttery.
