10Ah 3.2V 38120S Rechargeable lifepo4 battery
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF,EXW,FCA |
Min. Order: | 5000 Piece/Pieces |
Delivery Time: | 15-25 Days |
Basic Info
Model No.: HW38120S-10Ah
Additional Info
Packaging: 8pcs/carton, 24pcs/carton, 32pcs/carton
Productivity: 150000pcs/month
Brand: Headway
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 150000pcs/month
Certificate: ISO14001, ISO18001,UL1642
HS Code: 8507600090
Port: Shenzhen,Shanghai
Product Description
Item
|
Specification
|
Nominal Voltage
|
3.2V
|
Nominal Capacity(0.5C,25℃)
|
10Ah
|
Weight(Approximate)
|
330±5g
|
Standard Discharge@25℃
|
|
Recommended Discharge Current
|
10A
|
Max. Continuous Current
|
30A
|
Max. 30 sec. Pulse
|
100A
|
Cut-off Voltage
|
2.0V
|
Standard Charge
|
|
Charge Voltage
|
3.65V
|
Recommended Charge Current
|
10A
|
Max. Charge current
|
20A
|
Charge Time
|
60min ( can be customized)
|
Others
|
|
Internal Resistance
|
≤4mOhm
|
Self-discharge rate
|
≤2% per month
|

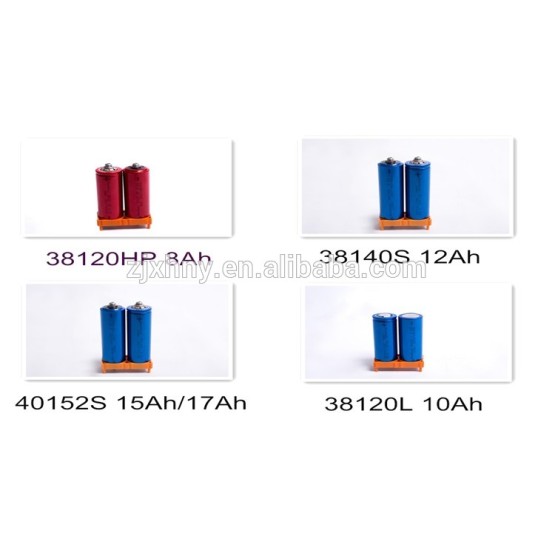

Model
|
38120S
|
38120L
|
38140S
|
40152S
|
38120HP
|
Nominal capacity
|
10Ah
|
10Ah
|
12Ah
|
15Ah/17Ah
|
8Ah
|
Operating voltage range
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
2.0-3.65V
|
Nominal voltage
|
3.2V
|
3.2V
|
3.2V
|
3.2V
|
3.2V
|
Internal resistance
|
≤4mΩ
|
≤4mΩ
|
≤4mΩ
|
≤4mΩ
|
≤2.5mΩ
|
Battery size
|
D38*H135mm
|
D38*H120mm
|
D38*H155mm
|
D40*H165mm
|
D38*H135mm
|
Standard charge current
|
1C
|
1C
|
1C
|
1C
|
3C
|
Max. continuous charge current
|
2C
|
2C
|
2C
|
2C
|
10C
|
Standard discharge current
|
1C
|
1C
|
1C
|
1C
|
5C
|
Max. continuous discharge current
|
3C
|
3C
|
3C
|
3C
|
15C
|
Max. pulse discharge current
|
10C
|
10C
|
10C
|
10C
|
30C
|
Cycle life(With standard charge and discharge)
|
2000
|
2000
|
2000
|
2000
|
2000
|
-10 degrees discharge(VS. normal temperature)
|
0.6
|
0.6
|
0.6
|
0.6
|
0.6
|
Allowable operating temperature range
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
-10-45℃
|
Capacity retention at room temperature with 28 days
|
≥97%
|
≥97%
|
≥97%
|
≥97%
|
≥97%
|
Capacity recovery rate at room temperature with 28 days
|
0.99
|
0.99
|
0.99
|
0.99
|
0.99
|
